Galvanized steel turnbuckles muaj nyob nrog xov los ntawm M6 txog M16 suav nrog
Raws li DIN 1480, daim ntawv SP-RR (2 threaded qhov muag ntsia liaj qhov rooj)
Qhib daim ntawv turnbuckle

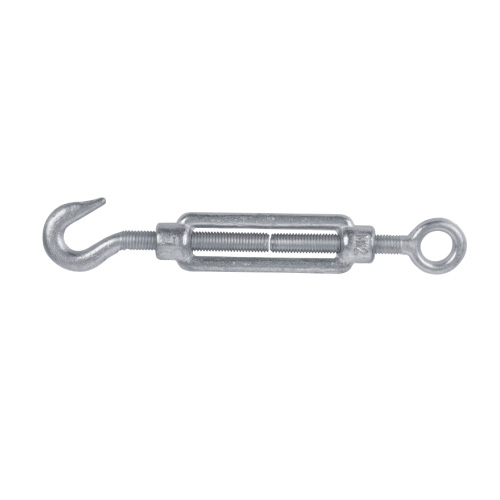

Turnbuckle DIN1480 tau nruab nrog ob sab laug thiab sab xis
Turnbuckles, tseem hu ua ncab cov ntsia hlau lossis lub raj mis ntsia hlau, tau siv los kho qhov nrawm lossis ntev ntawm sopes, cables, pas nrig, saw hlau thiab lwm yam txheej txheem nruj hauv kev tsim, tshuab, laj kab thiab lwm yam.
Feature ntawmTurnbuckle DIN 1480
Galvanized steel turnbuckles muaj nyob nrog xov los ntawm M6 txog M16 suav nrog
Raws li DIN 1480, daim ntawv SP-RR (2 threaded qhov muag ntsia liaj qhov rooj)
Qhib daim ntawv turnbuckle
Lub turnbuckle tau nruab nrog ob sab laug thiab sab xis
Turnbuckles, tseem hu ua ncab cov ntsia hlau lossis lub raj mis ntsia hlau, tau siv los kho qhov nrawm lossis ntev ntawm sopes, cables, pas nrig, saw hlau thiab lwm yam txheej txheem nruj hauv kev tsim, tshuab, laj kab thiab lwm yam.
Specification ntawm Turnbuckle DIN 1480
| Loj | L1 | L2 | D |
| hli | hli | hli | hli |
| M5 | 70 | 34 | 7 |
| M6 | 110 | 55 | 8 |
| M8 | 110 | 57 | 11 |
| M10 | 125 | 68 | 13 |
| M11 | 125 | 68 | 15 |
| M12 | 125 | 70 | 16 |
| M14 | 140 | 75 | 18 |
| M16 | 170 | 88 | 20 |
| M20 | 200 | 105 | 21 |
| M22 | 220 | 118 | 24 |
| M24 | 255 | 135 | 26 |
| M30 | 255 | 135 | 34 |
