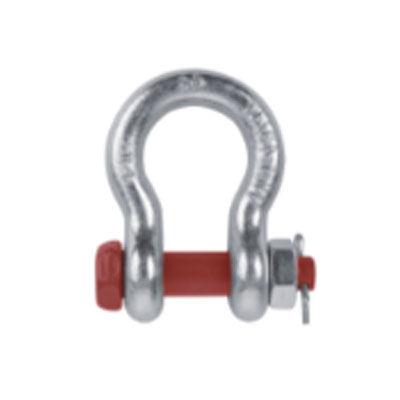

US HOM Tensile Forged Shackle G2130
  • US HOM Tensile Forged Shackle G2130US HOM Tensile Forged Shackle G2130

US HOM Tensile Forged Shackle G2130

Feature ntawm US TYPE Siab Tensile Forged Shackle G2130US hom
Khoom siv - 40cr
Forged Hlau
Qhov kawg load:W.L.L*4
Kev Kho Mob Nto Dej :Saib xim, Zinc pleated, Kub dalvanized,
Trivalent chromium plating zinc, hmoov txheej

Xa lus nug

Product Description


US HYPE Siab Tensile Forged Shackle G2130 Feature

US hom
Khoom siv - 40cr
Forged Hlau
Qhov kawg load:W.L.L*4
Kev Kho Mob Nto Dej :Saib xim, Zinc pleated, Kub dalvanized,
Trivalent chromium plating zinc, hmoov txheej

US HYPE Siab Tensile Forged Shackle G2130 Kev qhia tshwj xeeb

Nominal Loj Ua haujlwm hnyav
txwv (tons)
Dimensinons (hli) Qhov hnyav txhua tus
A B C D E F G H I
3/16 1/3 9.65 6.35 22.4 4.85 15.2 14.2 37.2 24.9 4.85 0.03
1/4 1/2 11.9 7.85 28.7 6.35 19.8 15.5 46.7 32.5 6.35 0.05
5/16 3/4 13.5 9.65 31 7.85 21.3 19.1 53 37.3 7.85 0.1
3/8 1 16.8 11.2 36.6 9.65 26.2 23.1 63 45.2 9.65 0.15
7/16 1-1/2 19.1 12.7 42.9 11.2 29.5 26.9 74 51.5 11.2 0.22
1/2 2 20.6 16 47.8 12.7 33.3 30.2 83.5 58.5 12.7 0.36
5/8 3-1/4 26.9 19.1 60.5 16 42.9 38.1 106 74.5 17.5 0.76
3/4 4-3/4 31.8 22.4 71.5 19.1 51 46 126 89 20.6 1.23
7/8 6-1/2 36.6 25.4 84 22.4 58 53 148 102 24.6 1.79
1 8-1/2 42.9 28.7 95.5 25.4 68.5 60.5 167 119 26.9 2.57
1-1/8 9-1/2 46 31.8 108 28.7 74 68.5 190 131 31.8 3.75
1-1/4 12 51.5 35.1 119 31.8 82.5 76 210 146 35.1 5.31
1-3/8 13-1/2 57 38.1 133 35.1 92 84 233 162 38.1 7.18
1-1/2 17 60.5 41.4 146 38.1 98.5 92 254 175 41.1 9.43
1-3/4 25 73 51 178 44.5 127 106 313 225 57 15.4
2 35 82.5 57 197 51 146 122 348 253 61 23.7
2-1/2 55 44.6 105 70 267 66.5 184 145 453 327 44.61
3 85 127 82.5 330 76 200 165 546 365 92 70
3-1/2 120 133 95.5 372 92 229 203 626 419 105 120
4 150 140 108 368 104 254 229 653 468 116 153
